Stepping Systems

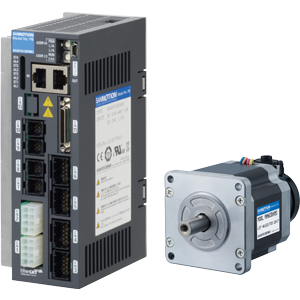

SanMotion F5

• 5-phase stepping systems realize high torque, low vibration, and low noise, and enable high-accuracy positioning.

• The wide lineup can be used in a wide range of applications.

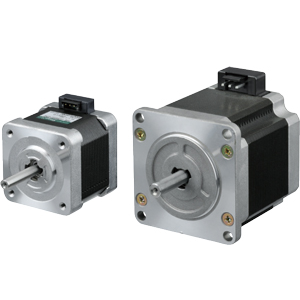

SanMotion F2

• With high torque, low vibration, low noise, and high resolution. Their rich lineup is used in a wide range of fields.

• The high resolution model realizes a dramatic reduction of vibration and noise by changing the basic step angle from 1.8°to 0.9°(Approximately 80% reduction in vibration at 42 mm sq.). Enables smooth driving and accurate positioning.

• This high-performance thin stepping motor effectively uses device space. Depending on the torque required, four motor lengths can be selected.

SanMotion F3

• Low introduction cost, with vibration characteristics similar to standard 5-phase motor driving.

• Combines high accuracy with high precision and cost performance. The current ratio of the winding can be adjusted by combining with a micro-step 3-phase driver.

• Since the step angle can be finely divided, it generates vibrations similar to those of 5-phase stepping motors, and superior to 2-phase stepping motors. Low vibration, low noise, and low cost compared to 5-phase stepping motors. And, with only 3 lead wires, wiring work is reduced.
