Industrial Integrated Workstations
HX Enclosed Series
15" | 17" | 19"
The HX workstation is housed in a fully sealed metal enclosure for industrial applications and it is offered in powder coat NEMA4 or stainless steel NEMA4X finish.
NEMA 12, 4/4X. IP65 & IP66 Rated. Max Temp of 45°C
5-Wire Resistive Touch Screen Available
Analog VGA Sealed Connector
Braswell Quad Core CPU
Configurations include Tall (T) or Short (S) Versions
100-240VAC or 24VDC Power Entry
2 Year Limited Warranty (Extended Warranty Available)
HW Enclosed Series
15.6" | 18.5" | 21.5" | 24"
The HW series are powerful workstations with Quad Core industrial computers in fanless, sealed enclosures.
NEMA 12, 4/4X. IP65 & IP66 Rated. Max Temp of 45°C
5-Wire Resistive Touch Screen Available
Analog VGA Sealed Connector
Braswell Quad Core CPU
Configurations include Tall (T) or Short (S) Versions
100-240VAC or 24VDC Power Entry
2 Year Limited Warranty (Extended Warranty Available)
EX Enclosed Series
15" | 17" | 19"
The EX integrated PC is housed in a secure IP65 enclosure for industrial applications with overhead or pedestal mounting. A version with 4x PoE X-Coded Ports and additional storage drives is optional.
Highly Customizable
5-Wire Resistive Touch Screen Available
Braswell Quad Core CPU
Skylake (6th Gen) Core i5/i7 CPUs
100-240VAC (3-Pin) or 24VDC Power Entry (4-Pin)
Equipped with Pedestal Mount (Bottom) and Overhead Mount (Top)
2 Year Limited Warranty (Extended Warranty Available)
EW Enclosed Series
18.5" | 21.5" | 24"
The EW is a customizable integrated PC with multiple storage and motherboard options housed in a secure IP65 enclosure. A version with 4x PoE X-Coded Ports and additional storage drives is available.
Highly Customizable
5-Wire Resistive Touch Screen Available
Braswell Quad Core CPU
Skylake (6th Gen) Core i5/i7 CPUs
100-240VAC (3-Pin) or 24VDC Power Entry (4-Pin)
Equipped with Pedestal Mount (Bottom) and Overhead Mount (Top)
2 Year Limited Warranty (Extended Warranty Available)
HSW Sealed PCs
15.6" | 18.5"
The HSW integrated PC is housed in a sealed NEMA 4X IP66 enclosure with stainless steel 316 food grade and overlay analog resistive touchscreen.
Fanless, Sealed Enclosure
Overlay Analog Resistive Touch Screen Included
Braswell Quad Core CPU
Max Temp of 45°C / 113°F
DVI & VGA Sealed Connectors
24VDC (4-Pin) Connector Entry
Bracket Mount System Included
2 Year Limited Warranty (Extended Warranty Available)
BBK Enclosed PCs
15.6" | 18.5" | 19" | 21.5" | 24"
The BBK is a slim industrial workstation with an array of computer options to be used as an alternative replacement for consumer grade monitors in an industrial environment.
19" is 4:3 and 15.6", 18.5", 21.5" & 24" are 16: 9 Aspect Ratio
5-Wire Resistive Touch Screen Available
Braswell Quad Core CPU
Skylake (6th Gen) Core i5/i7 CPUs
100-240VAC (3-Pin) or 24VDC Power Entry (4-Pin)
Universal VESA Mount Ready, Optional Stand Available
2 Year Limited Warranty (Extended Warranty Available)

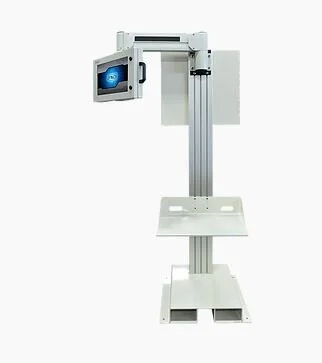

VertiStands
The VertiStand is an industrial station built to centralize the needs of computer operations anywhere throughout a plant, while maintaining space integrity and accessibility. Compatible with EX and EW Workstations.
Extruded Aluminum Construction and 14 Gauge Steel
Forklift Ready
Swing Arm Available
Wrap Wood Crate Included
Equipped with Pedestal Mount (Bottom) and Overhead Mount (Top)
2 Year Limited Warranty (Extended Warranty Available)
