GEVA 312T
The GEVA-312T is an integrated vision system complete with a 12” touch screen display, 1.6GHz dual core processor and two Gigabit Ethernet camera ports.
The slim-line form factor maximizes control panel real estate for PLCs, motions controllers and non-vision related components.
The GEVA-312T is a good choice for customers who are looking for a complete system that is low-cost, expandable and applicable for a wide range of vision applications.
Features
The GEVA-312T is compatible with the full range of Teledyne DALSA Genie cameras. Applications using one or two cameras can connect directly to the Camera/LAN ports on the unit.
Additional cameras can be accommodated using standard, low-cost Gigabit Ethernet switches. I/O connections, including camera trigger and light strobes, are interfaced using our standard PL-USB module.
This module mounts inside the control panel and connects to one of the GEVA-312T USB ports (multiple PL-USB modules can be installed).
In addition to touch panel control, the front of the unit provides push button display adjustments and a USB port that provides convenient access for removable peripherals such as keyboard/mouse and backup storage.
Integrated 12" touch display
1.6GHz dual core processor
Two expandable camera ports
Compatible with full range of GigE cameras
Direct connect I/O module
Windows 7 embedded OS

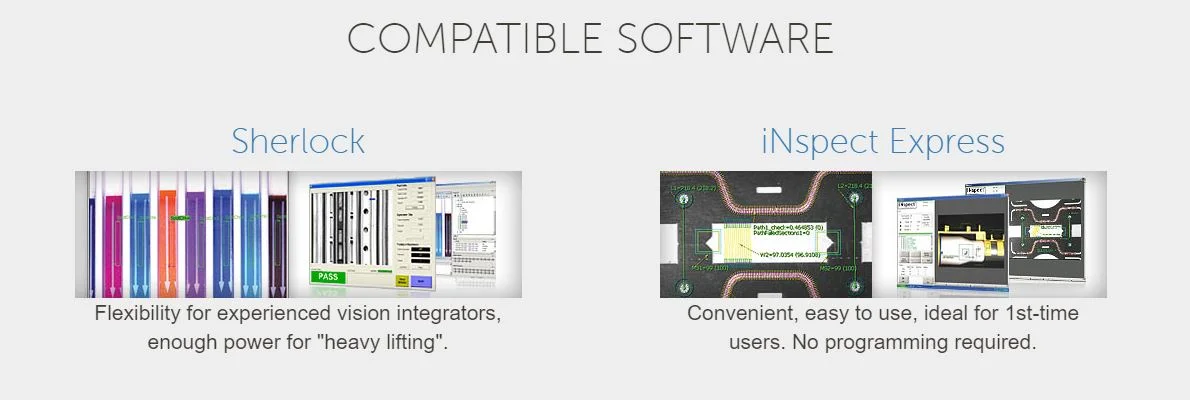

Choice of embedded vision application software
Push button display adjustments and convenient USB port on front
Slim-line panel or VESA mountable enclosure
