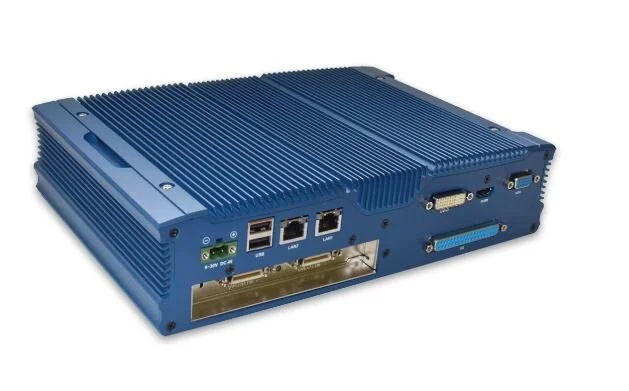

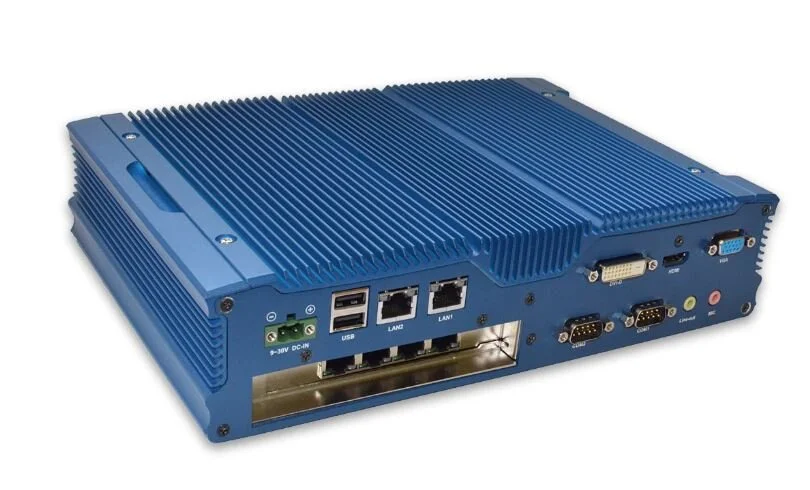

GEVA 3000/3000CL
High Performance
GEVA 3000 is equipped with a low power, Gen3 Core i7 processor and high-speed system resources to effectively manage multi-camera applications.
Each of the six (6) Gigabit compliant Ethernet ports internally connect through independent data lanes to alleviate bandwidth bottlenecks often associated with multi-camera acquisition.
Each network port can be configured for either camera or network use and each can be expanded using external switches to accommodate larger camera or network configurations.
GEVA 3000 network ports are compatible with a resolution range of mono or color area scan GigE cameras.
Flexible Interface
GEVA-3000 is available in two models, supporting either 6 high-bandwidth Gigabit Ethernet camera interfaces that significantly drive down system cost, or dual Camera Link Base / single Medium capture using Camera Link© cameras.
GEVA-3000 is equipped with a Gen3 Core i7 processor, paired with high-speed memory resources to tackle the most demanding applications.
It is fan-less design reduces downtime and maintenance costs associated with deploying standard PC solutions in harsh industrial environments.
Great Features
Turbo charged Core i7 processor for demanding applications
Expandable camera solution drives down system cost
Choice of application software suites user need and experience
Full complement of vision capabilities for tackling challenging tasks
Flexible camera interface supports area and line scan imaging
Integrated factory communication protocols simplify 3rd party connections
Industrial fanless enclosure allows operation in harsh environments
