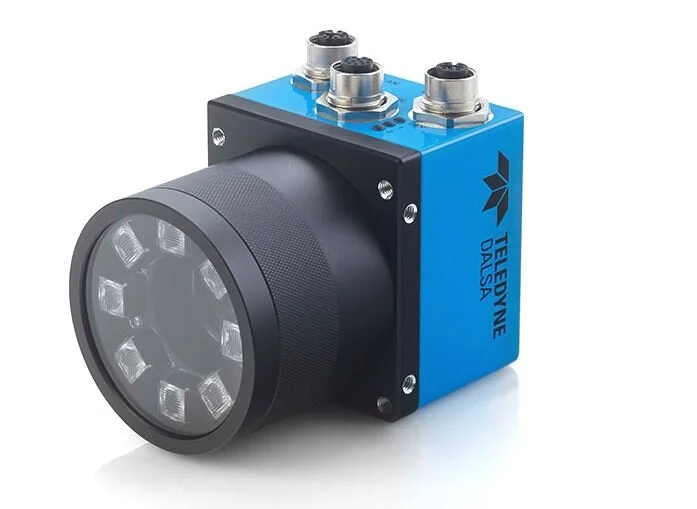

BOA 2


Built for Industry, Made for End Users

  • Introducing BOA2, a complete vision system in one smart camera. Featuring our highest smart camera resolution.

  • BOA2 combines lighting, image capture, processing, and easy-to-use embedded vision software into a convenient single device with a variety of I/O and mounting options.

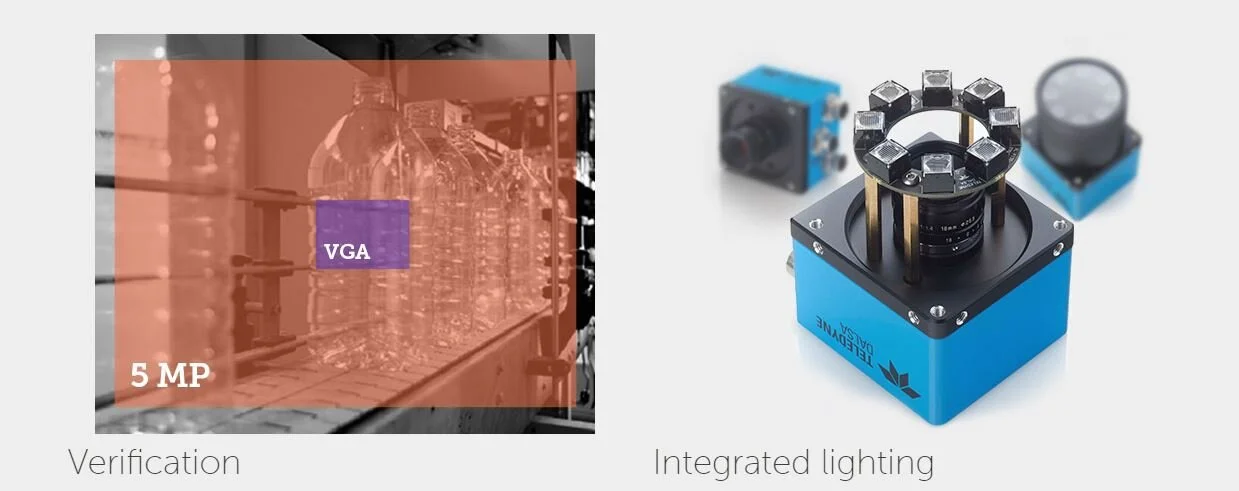

More Pixels

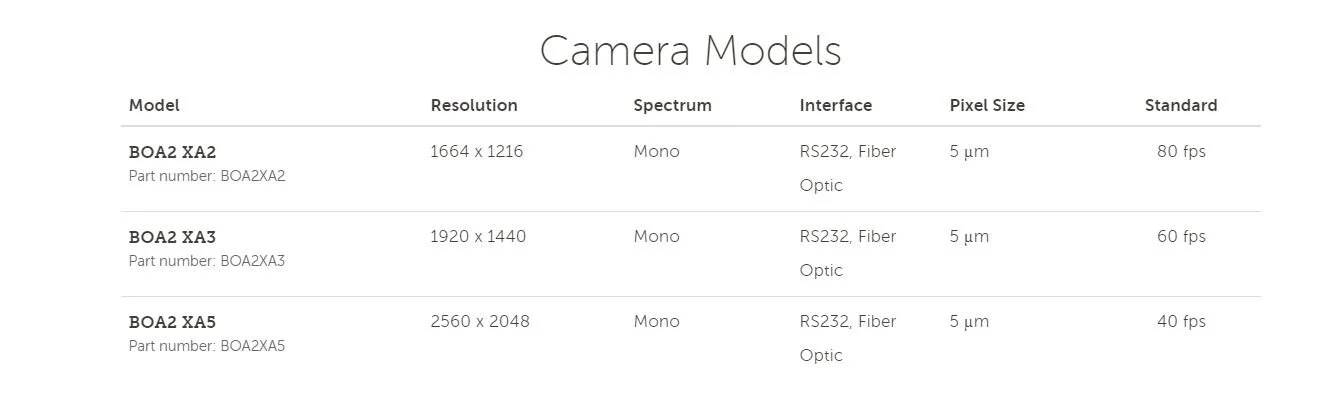

  • BOA2 uses advanced CMOS global shutter sensors with resolutions up to 5 megapixels to capture more detail in a larger inspection area.

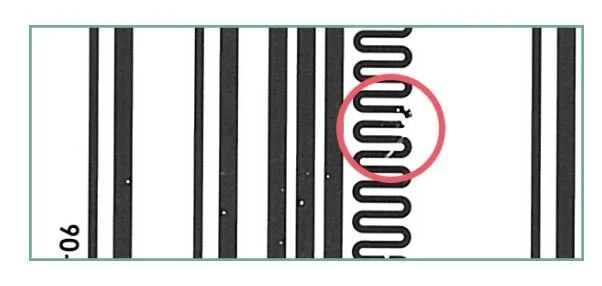

  • Superior image resolution allows BOA2 to capture the smallest defects that lower resolution sensors miss.


More Power

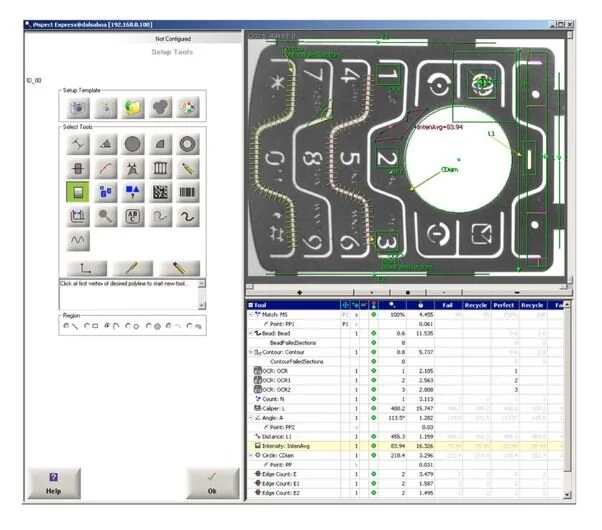

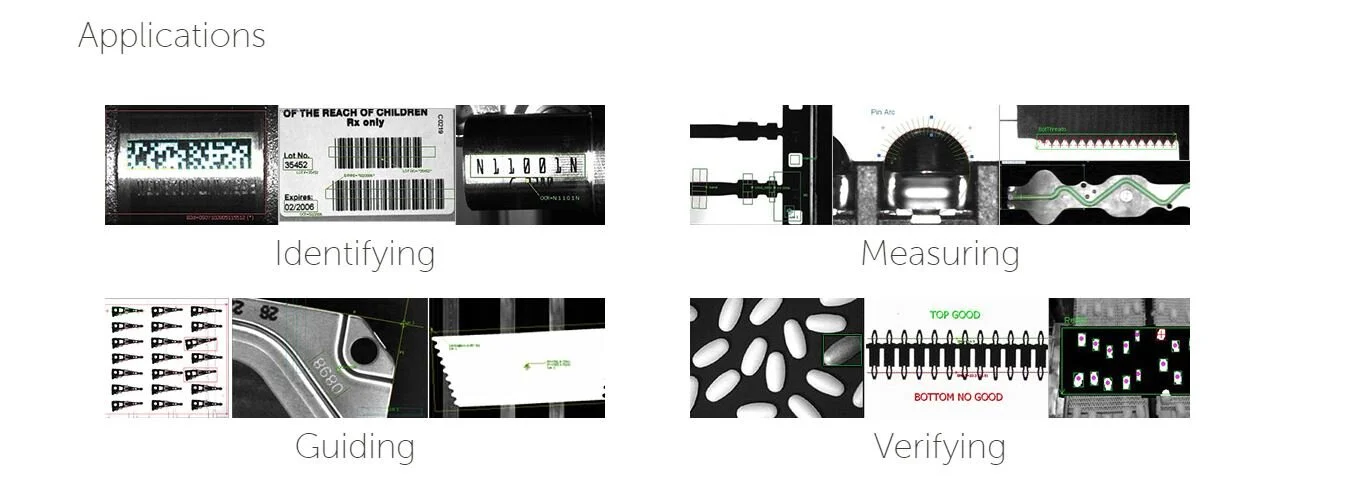

Each BOA2 smart camera is powered by a dual-core 1.5 GHz processor that drives the embedded iNspect Express vision software. This easy-to-use software features a robust tool set to enable common inspection tasks, including:

  • Pattern Matching

  • Precision Measurements

  • Flaw Detection

  • Verification

  • Presence/Absence of features

  • Robot Guidance

  • Part Identification

  • 2D matrix Reading

  • Barcode Reading

  • Optical Character Recognition
